Product Introduction
380LQ473M035A052
- Part Number
- 380LQ473M035A052
- Manufacturer/Brand
- Cornell Dubilier Electronics (CDE)
- Description
- CAP ALUM 47000UF 20 35V SNAP
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- 380LQ
- Quantity
- 1551pcs Stock Available.

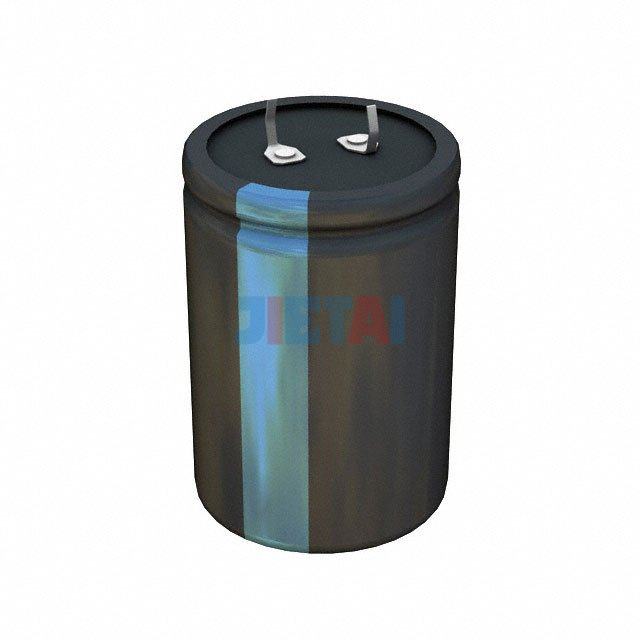

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 380LQ473M035A052 |
| Datasheet | 380LQ473M035A052 datasheet |
| Description | CAP ALUM 47000UF 20 35V SNAP |
| Manufacturer | Cornell Dubilier Electronics (CDE) |
| Series | 380LQ |
| Part Status | Active |
| Capacitance | 47000µF |
| Tolerance | ±20% |
| Voltage - Rated | 35V |
| ESR (Equivalent Series Resistance) | 17 mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.56A @ 120Hz |
| Ripple Current @ High Frequency | 9.84A @ 20kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
