Product Introduction

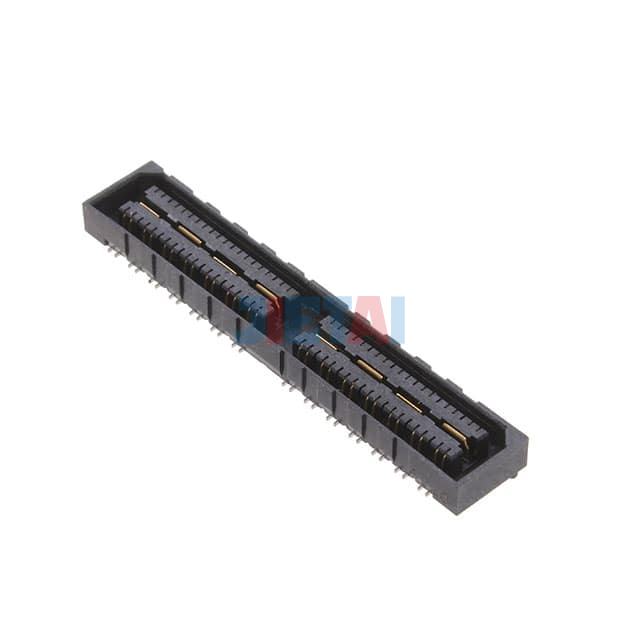

QSE-028-01-F-D-DP-A
- Part Number
- QSE-028-01-F-D-DP-A
- Manufacturer/Brand
- Samtec Inc.
- Description
- .8MM DOUBLE ROW MI SKT ASSY
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Q Strip® QSE
- Quantity
- 192pcs Stock Available.
Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | QSE-028-01-F-D-DP-A |
| Datasheet | QSE-028-01-F-D-DP-A datasheet |
| Description | .8MM DOUBLE ROW MI SKT ASSY |
| Manufacturer | Samtec Inc. |
| Series | Q Strip® QSE |
| Part Status | Active |
| Connector Type | Differential Pair Array, Female |
| Number of Positions | 56 |
| Pitch | 0.031" (0.80mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount |
| Features | Board Guide, Ground Bus (Plane) |
| Contact Finish | Gold |
| Contact Finish Thickness | 3.00µin (0.076µm) |
| Mated Stacking Heights | 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm |
| Height Above Board | 0.128" (3.25mm) |
