Product Introduction
ADUM6403CRIZ
- Part Number
- ADUM6403CRIZ
- Manufacturer/Brand
- Analog Devices Inc.
- Description
- DGTL ISO 5KV 4CH GEN PURP 16SOIC
- Category
- Digital Isolators
- RoHs Status
- Lead free / RoHS Compliant
- Series
- IsoPower®, iCoupler®
- Quantity
- 266pcs Stock Available.

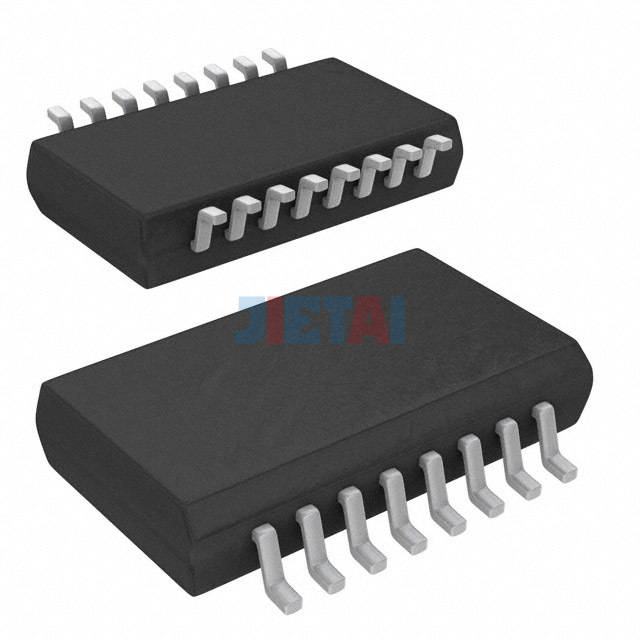

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | ADUM6403CRIZ |
| Datasheet | ADUM6403CRIZ datasheet |
| Description | DGTL ISO 5KV 4CH GEN PURP 16SOIC |
| Manufacturer | Analog Devices Inc. |
| Series | IsoPower®, iCoupler® |
| Part Status | Active |
| Technology | Magnetic Coupling |
| Type | General Purpose |
| Isolated Power | Yes |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 1/3 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 25Mbps |
| Propagation Delay tpLH / tpHL (Max) | 60ns, 60ns |
| Pulse Width Distortion (Max) | 6ns |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC-IC |
