Product Introduction
SMCJ22AQ-13-F
- Part Number
- SMCJ22AQ-13-F
- Manufacturer/Brand
- Diodes Incorporated
- Description
- TRANSIENT VOLTAGE SUPPRESSORSMC
- Category
- TVS - Diodes
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Automotive, AEC-Q101
- Quantity
- 3143pcs Stock Available.

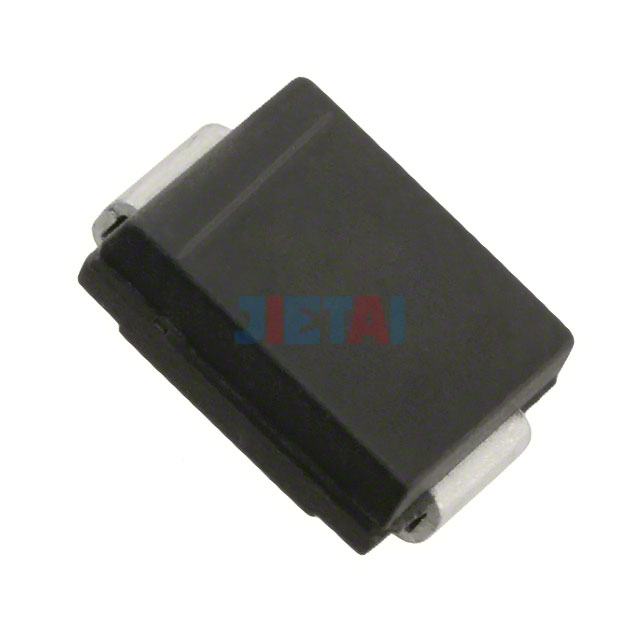

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SMCJ22AQ-13-F |
| Description | TRANSIENT VOLTAGE SUPPRESSORSMC |
| Manufacturer | Diodes Incorporated |
| Series | Automotive, AEC-Q101 |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | 1 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 22V |
| Voltage - Breakdown (Min) | 24.4V |
| Voltage - Clamping (Max) @ Ipp | 35.5V |
| Current - Peak Pulse (10/1000µs) | 42.2A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | Automotive |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | SMC |
