Product Introduction
54101-G05-00
- Part Number
- 54101-G05-00
- Manufacturer/Brand
- Amphenol ICC (FCI)
- Description
- CONN HEADER VERT 36000POS 2.54MM
- RoHs Status
- Lead free / RoHS Compliant
- Series
- BERGSTIK®
- Quantity
- 6626pcs Stock Available.

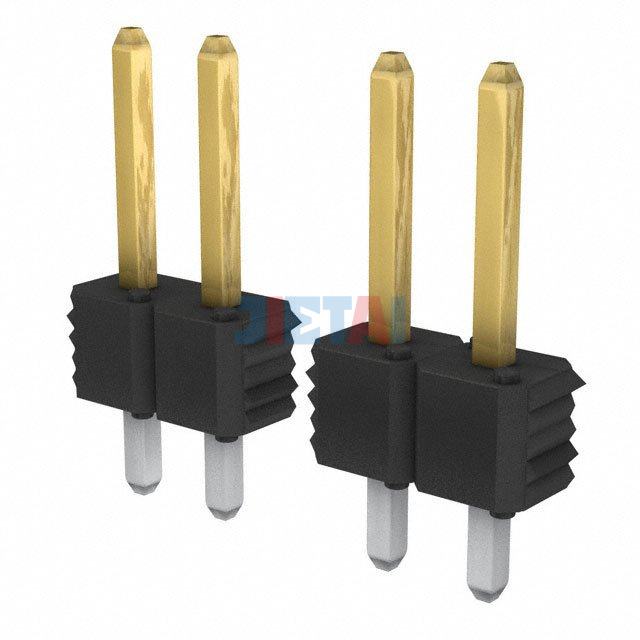

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 54101-G05-00 |
| Datasheet | 54101-G05-00 datasheet |
| Description | CONN HEADER VERT 36000POS 2.54MM |
| Manufacturer | Amphenol ICC (FCI) |
| Series | BERGSTIK® |
| Part Status | Obsolete |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 36000, Cuttable |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.230" (5.84mm) |
| Contact Length - Post | 0.095" (2.41mm) |
| Overall Contact Length | 0.425" (10.80mm) |
| Insulation Height | 0.100" (2.54mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold or Gold, GXT™ |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | - |
| Contact Material | Phosphor Bronze |
| Insulation Material | - |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating | - |
| Voltage Rating | - |
