Product Introduction
SXR331M010ST
- Part Number
- SXR331M010ST
- Manufacturer/Brand
- Cornell Dubilier Electronics (CDE)
- Description
- CAP ALUM 330UF 20 10V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- SXR
- Quantity
- 7604pcs Stock Available.

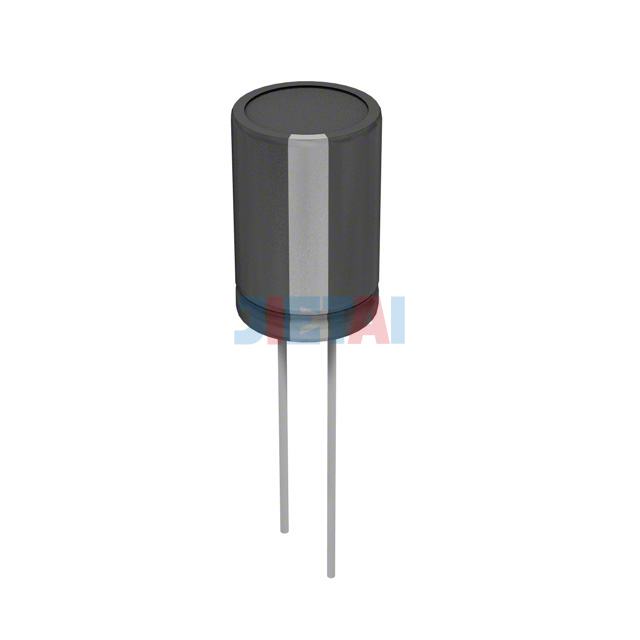

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SXR331M010ST |
| Datasheet | SXR331M010ST datasheet |
| Description | CAP ALUM 330UF 20 10V RADIAL |
| Manufacturer | Cornell Dubilier Electronics (CDE) |
| Series | SXR |
| Part Status | Obsolete |
| Capacitance | 330µF |
| Tolerance | ±20% |
| Voltage - Rated | 10V |
| ESR (Equivalent Series Resistance) | 760 mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 240mA @ 120Hz |
| Ripple Current @ High Frequency | 400mA @ 100kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
