Product Introduction
URY1H681MRD
- Part Number
- URY1H681MRD
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 680UF 20 50V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- URY
- Quantity
- 297pcs Stock Available.

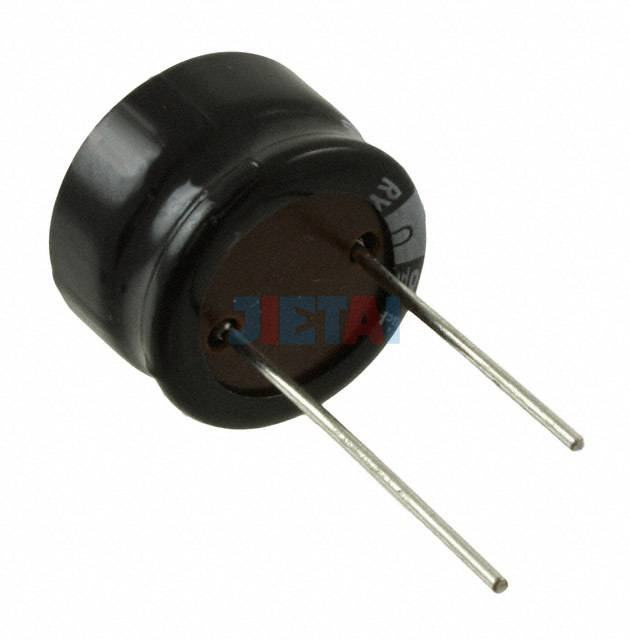

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | URY1H681MRD |
| Datasheet | URY1H681MRD datasheet |
| Description | CAP ALUM 680UF 20 50V RADIAL |
| Manufacturer | Nichicon |
| Series | URY |
| Part Status | Active |
| Capacitance | 680µF |
| Tolerance | ±20% |
| Voltage - Rated | 50V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 700mA @ 120Hz |
| Ripple Current @ High Frequency | 1.05A @ 10kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
