Product Introduction
LQG15HN56NJ02D
- Part Number
- LQG15HN56NJ02D
- Manufacturer/Brand
- Murata Electronics North America
- Description
- FIXED IND 56NH 200MA 1.2 OHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LQG15
- Quantity
- 8pcs Stock Available.

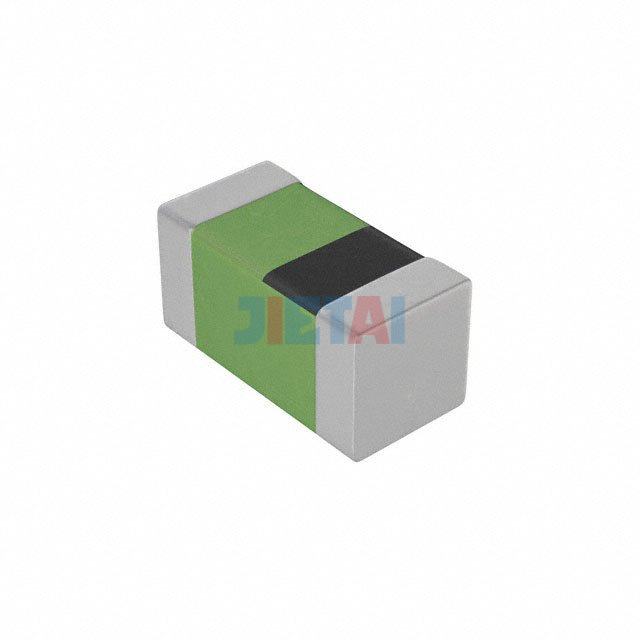

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LQG15HN56NJ02D |
| Datasheet | LQG15HN56NJ02D datasheet |
| Description | FIXED IND 56NH 200MA 1.2 OHM SMD |
| Manufacturer | Murata Electronics North America |
| Series | LQG15 |
| Part Status | Active |
| Type | Multilayer |
| Material - Core | Air |
| Inductance | 56nH |
| Tolerance | ±5% |
| Current Rating | 200mA |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.2 Ohm Max |
| Q @ Freq | 8 @ 100MHz |
| Frequency - Self Resonant | 800MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
