Product Introduction
CTX50-1-52M-R
- Part Number
- CTX50-1-52M-R
- Manufacturer/Brand
- Eaton - Electronics Division
- Description
- FIXED IND 50UH 2.6A 71.5 MOHM TH
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- CTX
- Quantity
- 379pcs Stock Available.

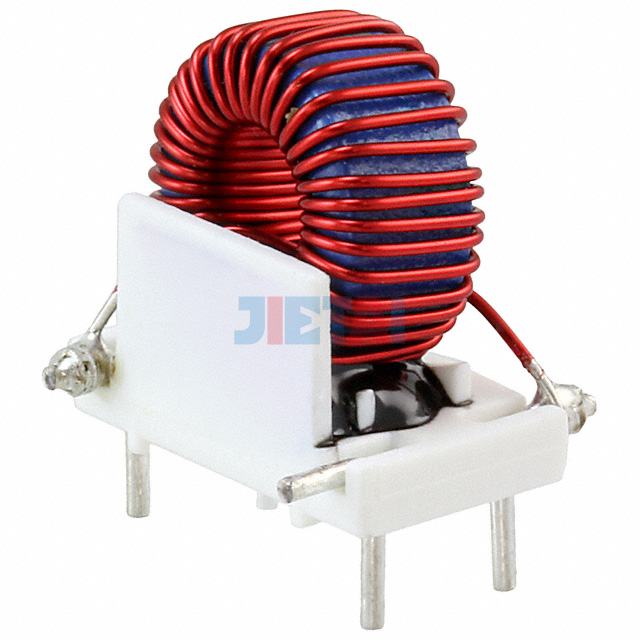

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | CTX50-1-52M-R |
| Datasheet | CTX50-1-52M-R datasheet |
| Description | FIXED IND 50UH 2.6A 71.5 MOHM TH |
| Manufacturer | Eaton - Electronics Division |
| Series | CTX |
| Part Status | Active |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 50µH |
| Tolerance | ±20% |
| Current Rating | 2.6A |
| Current - Saturation | 2.7A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 71.5 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 75°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | - |
| Size / Dimension | 0.772" L x 0.634" W (19.60mm x 16.10mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
