Product Introduction
0039276023
- Part Number
- 0039276023
- Manufacturer/Brand
- Molex
- Description
- CONN HEADER VERT 2POS 2.5MM
- RoHs Status
- Lead free / RoHS Compliant
- Series
- 5483
- Quantity
- 8749pcs Stock Available.

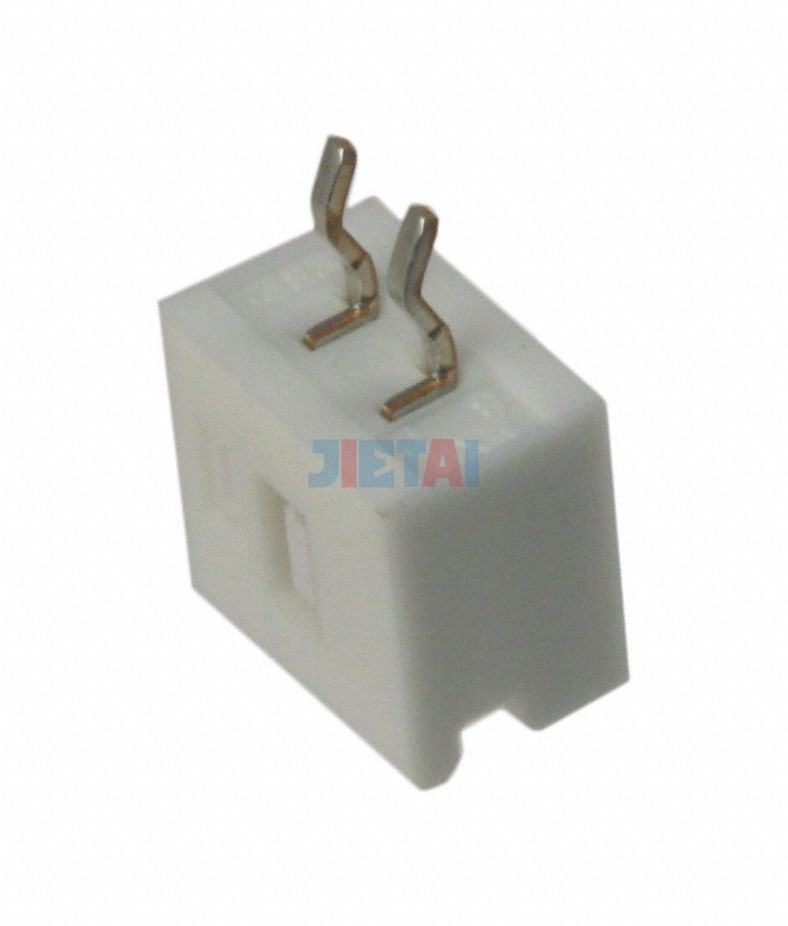

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 0039276023 |
| Datasheet | 0039276023 datasheet |
| Description | CONN HEADER VERT 2POS 2.5MM |
| Manufacturer | Molex |
| Series | 5483 |
| Part Status | Obsolete |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.098" (2.50mm) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Fastening Type | Friction Lock |
| Contact Length - Mating | 0.165" (4.20mm) |
| Contact Length - Post | 0.132" (3.35mm) |
| Overall Contact Length | 0.356" (9.05mm) |
| Insulation Height | 0.268" (6.80mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polybutylene Terephthalate (PBTP) |
| Features | - |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating | - |
| Voltage Rating | - |
