Product Introduction
MPIA4015V2-R56-R
- Part Number
- MPIA4015V2-R56-R
- Manufacturer/Brand
- Eaton - Electronics Division
- Description
- FIXED IND 560NH 7.5A 14 MOHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- MPIA40-V2
- Quantity
- 13pcs Stock Available.

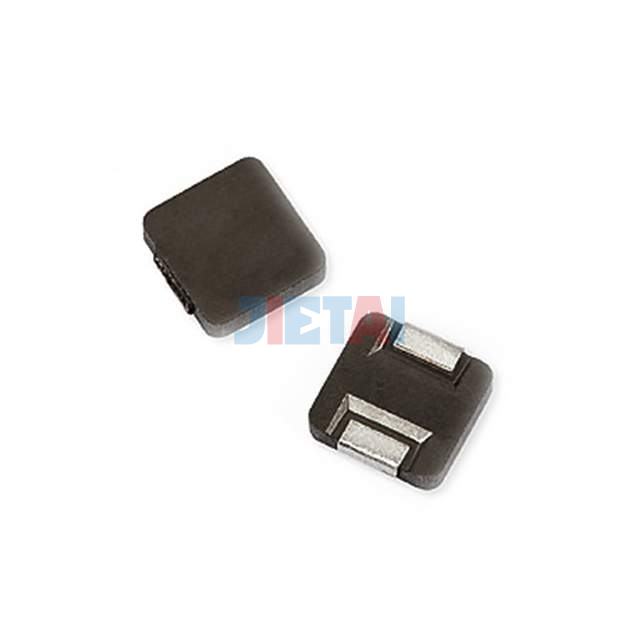

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | MPIA4015V2-R56-R |
| Datasheet | MPIA4015V2-R56-R datasheet |
| Description | FIXED IND 560NH 7.5A 14 MOHM SMD |
| Manufacturer | Eaton - Electronics Division |
| Series | MPIA40-V2 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Metal Composite |
| Inductance | 560nH |
| Tolerance | ±20% |
| Current Rating | 7.5A |
| Current - Saturation | 8.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 14 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 84MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.195" L x 0.165" W (4.95mm x 4.20mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
