Product Introduction
SD52-270-R
- Part Number
- SD52-270-R
- Manufacturer/Brand
- Eaton - Electronics Division
- Description
- FIXED IND 27UH 730MA 286.4 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- SD52
- Quantity
- 13pcs Stock Available.

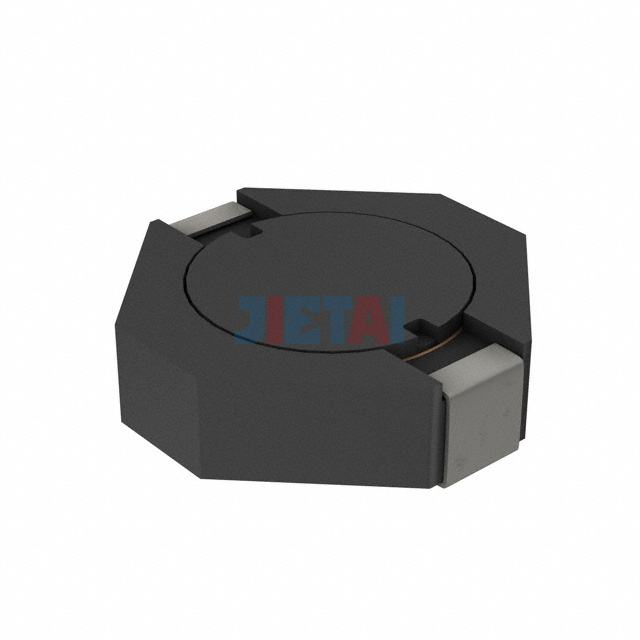

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SD52-270-R |
| Datasheet | SD52-270-R datasheet |
| Description | FIXED IND 27UH 730MA 286.4 MOHM |
| Manufacturer | Eaton - Electronics Division |
| Series | SD52 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 27µH |
| Tolerance | ±20% |
| Current Rating | 730mA |
| Current - Saturation | 650mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 286.4 mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
