Product Introduction
LNR1K333MSE
- Part Number
- LNR1K333MSE
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 33000UF 20 80V SCREW
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LNR
- Quantity
- 180pcs Stock Available.

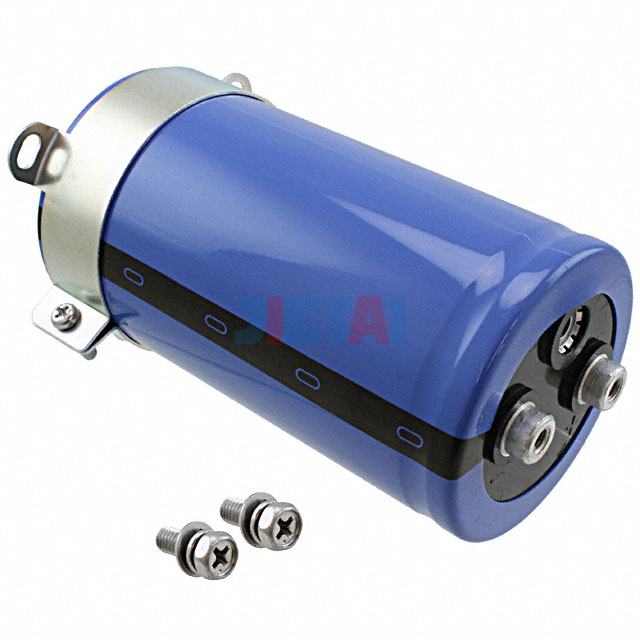

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LNR1K333MSE |
| Datasheet | LNR1K333MSE datasheet |
| Description | CAP ALUM 33000UF 20 80V SCREW |
| Manufacturer | Nichicon |
| Series | LNR |
| Part Status | Active |
| Capacitance | 33000µF |
| Tolerance | ±20% |
| Voltage - Rated | 80V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9.2A @ 120Hz |
| Ripple Current @ High Frequency | 10.58A @ 10kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.843" (123.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
