Product Introduction
NSVMUN5332DW1T3G
- Part Number
- NSVMUN5332DW1T3G
- Manufacturer/Brand
- ON Semiconductor
- Description
- TRANS PREBIAS NPN/PNP 50V SC88
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Automotive, AEC-Q101
- Quantity
- 10117pcs Stock Available.

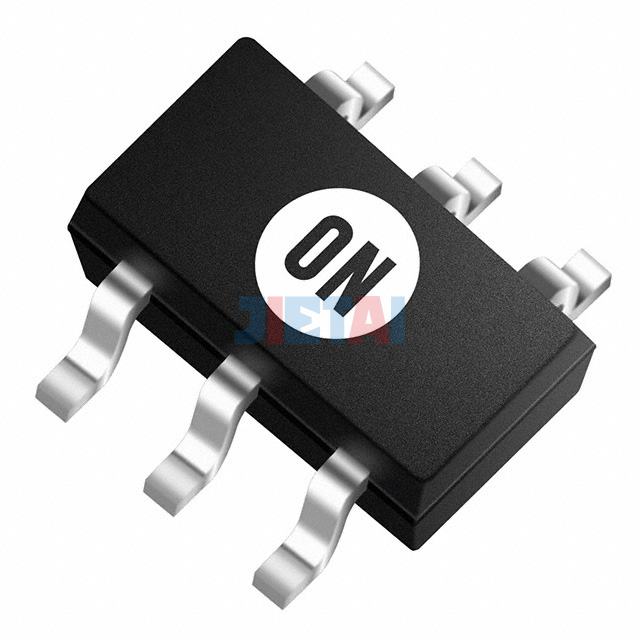

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | NSVMUN5332DW1T3G |
| Datasheet | NSVMUN5332DW1T3G datasheet |
| Description | TRANS PREBIAS NPN/PNP 50V SC88 |
| Manufacturer | ON Semiconductor |
| Series | Automotive, AEC-Q101 |
| Part Status | Active |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Resistor - Base (R1) | 4.7 kOhms |
| Resistor - Emitter Base (R2) | 4.7 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 1mA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| Frequency - Transition | - |
| Power - Max | 385mW |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-88/SC70-6/SOT-363 |
