Product Introduction
DMG5640N0R
- Part Number
- DMG5640N0R
- Manufacturer/Brand
- Panasonic Electronic Components
- Description
- TRANS PREBIAS NPN/PNP SMINI6
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 11pcs Stock Available.

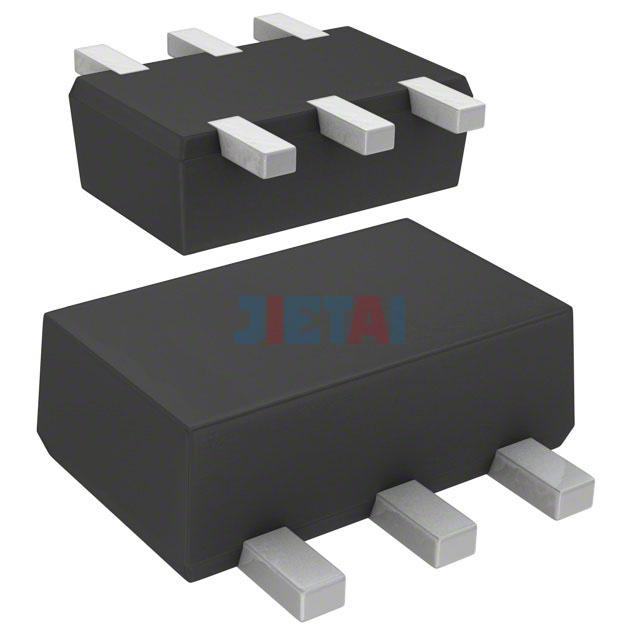

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | DMG5640N0R |
| Datasheet | DMG5640N0R datasheet |
| Description | TRANS PREBIAS NPN/PNP SMINI6 |
| Manufacturer | Panasonic Electronic Components |
| Series | - |
| Part Status | Active |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Resistor - Base (R1) | 4.7 kOhms |
| Resistor - Emitter Base (R2) | 47 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| Frequency - Transition | - |
| Power - Max | 150mW |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Flat Leads |
| Supplier Device Package | SMini6-F3-B |
