Product Introduction
NSB1706DMW5T1
- Part Number
- NSB1706DMW5T1
- Manufacturer/Brand
- ON Semiconductor
- Description
- TRANS 2NPN PREBIAS 0.25W SC70
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 4036pcs Stock Available.

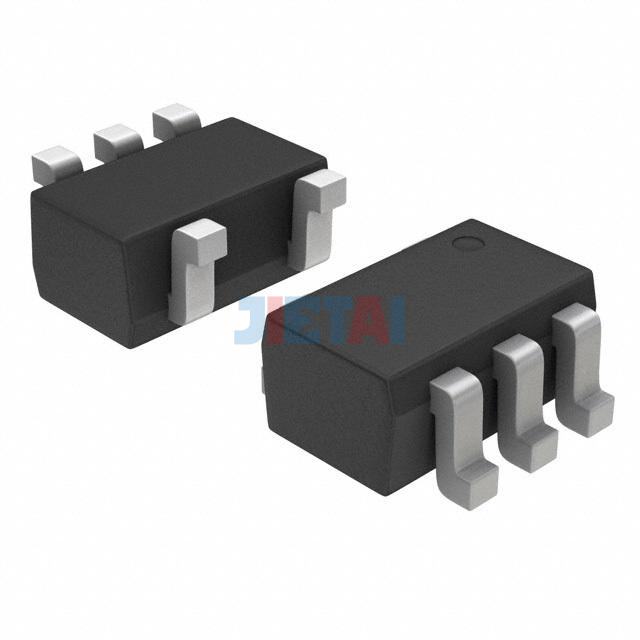

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | NSB1706DMW5T1 |
| Datasheet | NSB1706DMW5T1 datasheet |
| Description | TRANS 2NPN PREBIAS 0.25W SC70 |
| Manufacturer | ON Semiconductor |
| Series | - |
| Part Status | Obsolete |
| Transistor Type | 2 NPN - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Resistor - Base (R1) | 4.7 kOhms |
| Resistor - Emitter Base (R2) | 47 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 1mA, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| Frequency - Transition | - |
| Power - Max | 250mW |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-88A (SC-70-5/SOT-353) |
