Product Introduction
SZESD7481MUT5G
- Part Number
- SZESD7481MUT5G
- Manufacturer/Brand
- ON Semiconductor
- Description
- TVS DIODE 3.3V 12V 2X3DFN
- Category
- TVS - Diodes
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Automotive, AEC-Q101
- Quantity
- 8pcs Stock Available.

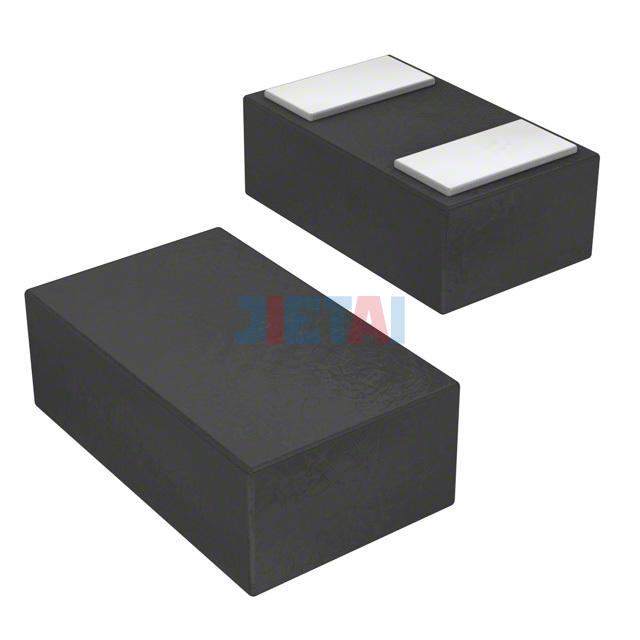

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SZESD7481MUT5G |
| Datasheet | SZESD7481MUT5G datasheet |
| Description | TVS DIODE 3.3V 12V 2X3DFN |
| Manufacturer | ON Semiconductor |
| Series | Automotive, AEC-Q101 |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | - |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 6V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 12V |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | Automotive, RF Antenna |
| Capacitance @ Frequency | 0.25pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 2-X3DFN (0.62x0.32) |
