Home / Products / Capacitors / Aluminum Electrolytic Capacitors / 100YXH100MEFCT810X23
Product Introduction
100YXH100MEFCT810X23
- Part Number
- 100YXH100MEFCT810X23
- Manufacturer/Brand
- Rubycon
- Description
- CAP ALUM 100UF 20 100V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- YXH
- Quantity
- 1166pcs Stock Available.

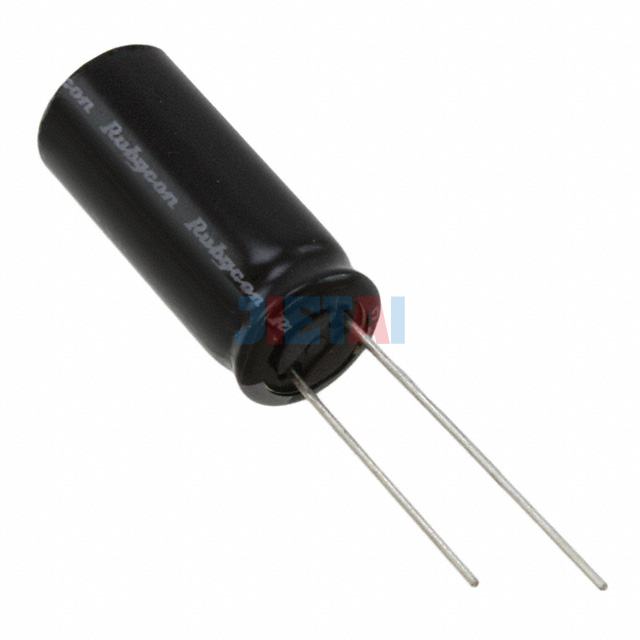

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 100YXH100MEFCT810X23 |
| Datasheet | 100YXH100MEFCT810X23 datasheet |
| Description | CAP ALUM 100UF 20 100V RADIAL |
| Manufacturer | Rubycon |
| Series | YXH |
| Part Status | Active |
| Capacitance | 100µF |
| Tolerance | ±20% |
| Voltage - Rated | 100V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 297.5mA @ 120Hz |
| Ripple Current @ High Frequency | 595mA @ 100kHz |
| Impedance | 160 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
