Product Introduction
PQMH13Z
- Part Number
- PQMH13Z
- Manufacturer/Brand
- Nexperia USA Inc.
- Description
- TRANS NPN/NPN RET 6DFN
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Automotive, AEC-Q101
- Quantity
- 8pcs Stock Available.

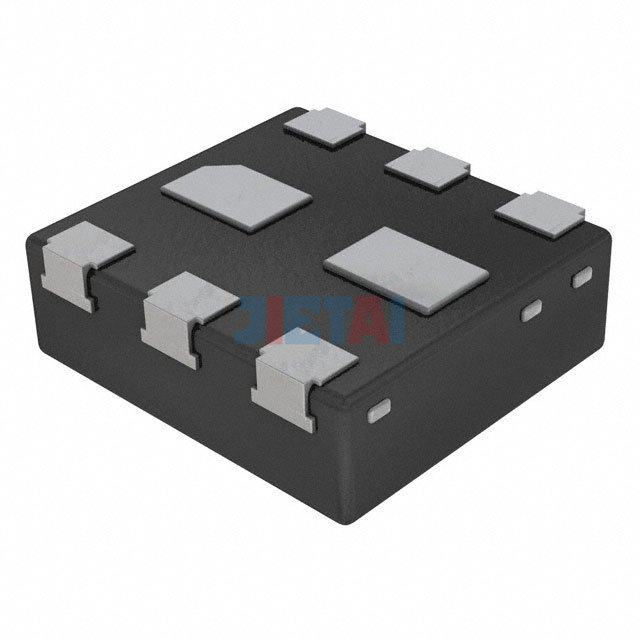

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | PQMH13Z |
| Datasheet | PQMH13Z datasheet |
| Description | TRANS NPN/NPN RET 6DFN |
| Manufacturer | Nexperia USA Inc. |
| Series | Automotive, AEC-Q101 |
| Part Status | Active |
| Transistor Type | 2 NPN - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Resistor - Base (R1) | 4.7 kOhms |
| Resistor - Emitter Base (R2) | 47 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 100mV @ 250µA, 5mA |
| Current - Collector Cutoff (Max) | 1µA |
| Frequency - Transition | 230MHz |
| Power - Max | 230mW |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFDFN Exposed Pad |
| Supplier Device Package | DFN1010B-6 |
