Home / Products / Capacitors / Aluminum Electrolytic Capacitors / UCY2G470MHD6
Product Introduction
UCY2G470MHD6
- Part Number
- UCY2G470MHD6
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 47UF 20 400V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UCY
- Quantity
- 396pcs Stock Available.

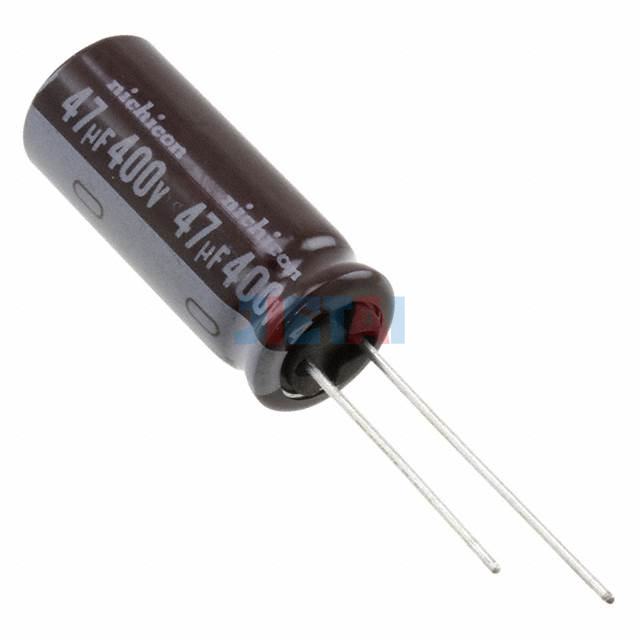

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UCY2G470MHD6 |
| Datasheet | UCY2G470MHD6 datasheet |
| Description | CAP ALUM 47UF 20 400V RADIAL |
| Manufacturer | Nichicon |
| Series | UCY |
| Part Status | Active |
| Capacitance | 47µF |
| Tolerance | ±20% |
| Voltage - Rated | 400V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 510mA @ 120Hz |
| Ripple Current @ High Frequency | 1.02A @ 100kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
