Home / Products / Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers / L6226QTR
Product Introduction
L6226QTR
- Part Number
- L6226QTR
- Manufacturer/Brand
- STMicroelectronics
- Description
- IC MTR DRVR BIPLR 8-52V 32VFQFPN
- Category
- PMIC - Motor Drivers, Controllers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 3129pcs Stock Available.

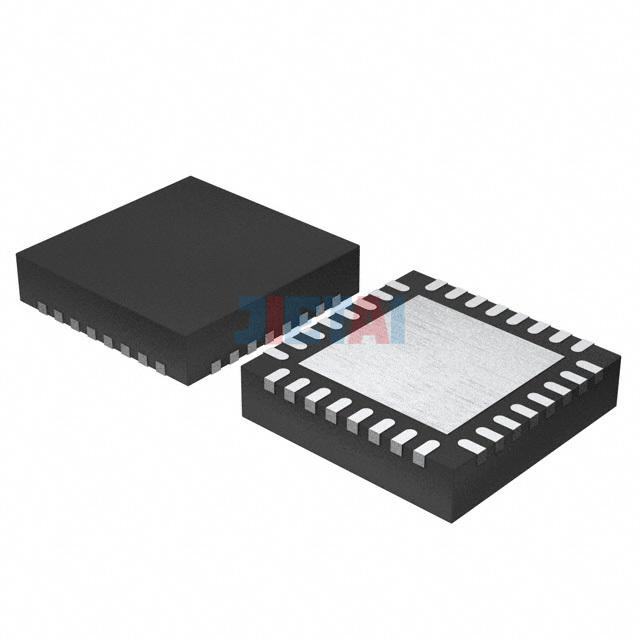

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | L6226QTR |
| Datasheet | L6226QTR datasheet |
| Description | IC MTR DRVR BIPLR 8-52V 32VFQFPN |
| Manufacturer | STMicroelectronics |
| Series | - |
| Part Status | Active |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | DMOS |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 1.4A |
| Voltage - Supply | 8V ~ 52V |
| Voltage - Load | 8V ~ 52V |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VFQFPN (5x5) |
