Product Introduction
SI3456CDV-T1-GE3
- Part Number
- SI3456CDV-T1-GE3
- Manufacturer/Brand
- Vishay Siliconix
- Description
- MOSFET N-CH 30V 7.7A 6TSOP
- Category
- Transistors - FETs, MOSFETs - Single
- RoHs Status
- Lead free / RoHS Compliant
- Series
- TrenchFET®
- Quantity
- 8639pcs Stock Available.

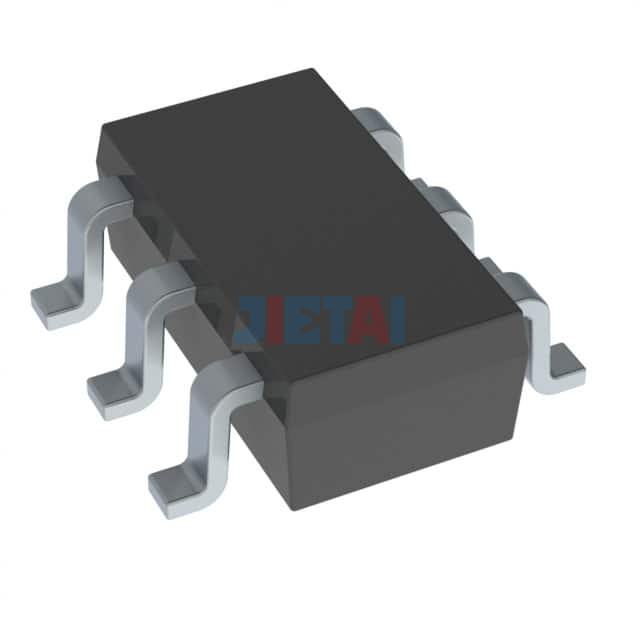

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SI3456CDV-T1-GE3 |
| Description | MOSFET N-CH 30V 7.7A 6TSOP |
| Manufacturer | Vishay Siliconix |
| Series | TrenchFET® |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 7.7A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 34 mOhm @ 6.1A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12nC @ 10V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 460pF @ 15V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta), 3.3W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-TSOP |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
