Product Introduction
NVTFS5C658NLWFTAG
- Part Number
- NVTFS5C658NLWFTAG
- Manufacturer/Brand
- ON Semiconductor
- Description
- MOSFET N-CH 60V 109A 8WDFN
- Category
- Transistors - FETs, MOSFETs - Single
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Automotive, AEC-Q101
- Quantity
- 6273pcs Stock Available.

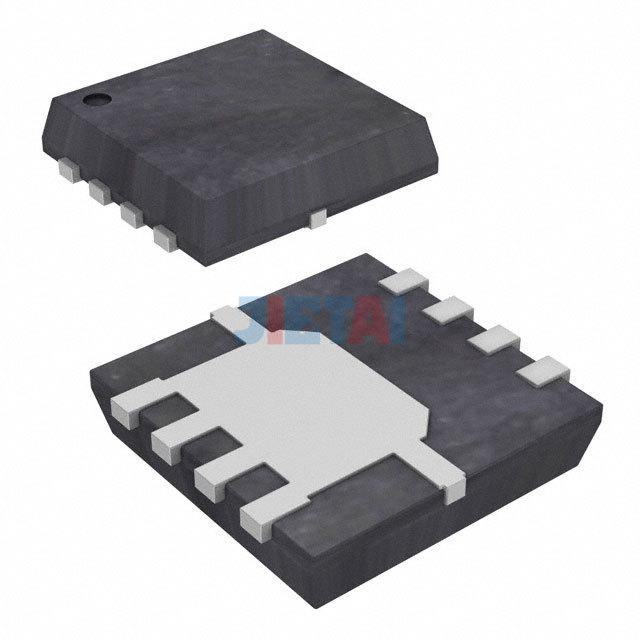

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | NVTFS5C658NLWFTAG |
| Datasheet | NVTFS5C658NLWFTAG datasheet |
| Description | MOSFET N-CH 60V 109A 8WDFN |
| Manufacturer | ON Semiconductor |
| Series | Automotive, AEC-Q101 |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 109A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 5 mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12nC @ 4.5V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1935pF @ 25V |
| FET Feature | - |
| Power Dissipation (Max) | 114W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-WDFN (3.3x3.3) |
| Package / Case | 8-PowerWDFN |
